Product Dimensions 32"h x 14.75"w x 17.88"d

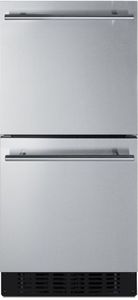

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDR1524 is a 15" wide 2-drawer refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces.Read More
The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. The drawer fronts are fully finished in stainless steel, but can also accept panel overlays for a custom look (panel dimensions: 14.75" W x 14.1" H at 3/4" thick). Sleek stainless steel handles are included.
Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two removable dividers allow you to separate the drawer compartments for more versatile storage. White LED lighting makes it easy to view stored contents in the top drawer. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance.
The ASDR1524 refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Additional 18" deep choices are available in a variety of styles, including 15", 19", and 24" widths, as well as outdoor refrigerators, wine cellars, and more.
Unique 17.88" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
Sized just under 32" high to allow installation under lower ADA compliant counters
Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 15" wide openings
Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for lasting durability with a finished front for an elegant look
Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button
Audible alarm will sound if either drawer is left open longer than one minute
Stainless steel handle completes the look
No-frost operation for minimal user maintenance
General Specs | |
Product Weight (lbs.) | 65 |
Width (in.) | 14.75 |
Depth (in.) | 17.88 |
Height (in.) | 32 |
Handle Type | Tubular |
Total Capacity (cu. ft.) | 1.7 |
Color | Stainless Steel |
Depth w/Door Open 90 Degrees (in.) | 29.63 |
Door Color | Stainless Steel |
Handle Color | Stainless Steel |
Manufacturer Warranty | 1 Year Parts & Labor |
Fingerprint Resistant Finish | No |
Door Panel Type | Solid |
Color/Finish Name | Stainless Steel |
Appliance Fit Width (in.) | 15 |
Ice Maker | No |
Door Swing Option | Drawer |
Depth Type | Standard Depth |
Ice/Water Dispenser | No |
ENERGY STAR Certified | No |
Commercial Use Approved | No |
Custom Panel Ready | No |
Installation Type | Built-In or Freestanding |
ADA Compliant | Yes |
Wifi Capable | No |
Smart Compatible | No |
Voltage | 115 |
Frequency | 60 |
Amp | 1 |
Type of Refrigerator | Under The Counter Refrigerator |
Depth Including Handles (in.) | 19 |
Ice Maker Type | None |
Defrost Type | Frost Free |
Refrigeration General Features | Door Alarm |
Overall Height (in.) | 32 |
Garage Ready | No |
